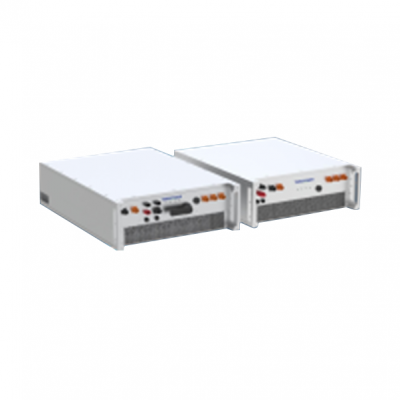

- Three-level topology with conversion efficiency up to 99% and superior power quality; grid-forming control supporting inertia response, primary frequency regulation, virtual impedance, and high/low voltage ride-through capabilities.
- Carrier synchronization reduces circulating current and interference during parallel operation; IP66 protection rating for harsh environment adaptability.
- Integrated high-voltage junction box design; deep integration of PCS and BMS; modular design supports parallel operation of multiple units.
- Rated Power: 215/235/250kW
- DC Side Operating Voltage Range: 1000Vdc–1500Vdc
- Rated Output Voltage: 690Vac (-20%~+15%)
- Dimensions (W×H×D): 800×275×965mm, 800×275×1125mm
- Weight: 108kg, 120kg
