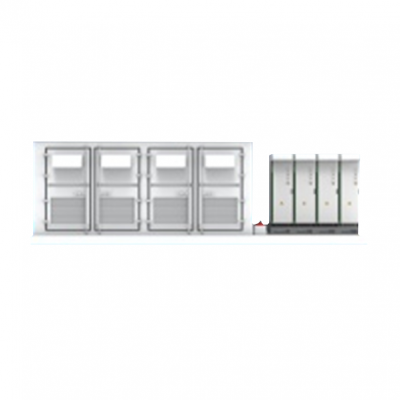

- Highly integrated design with overall unit length of less than 8m, ensuring minimal footprint; perfectly compatible with 6.25MWh systems, significantly reducing footprint by minimizing the number of energy storage units.
- Dry-type or oil-immersed transformer options available to meet customized requirements for high/low voltage systems.
- Supports parallel connection of 2 or 4 battery compartments, enabling independent charge/discharge management for each compartment and accelerating commissioning and grid-connection processes.
- Protection Rating: PCS (IP65), Others (IP54)
- Rated Power: 1565kW × 4
- DC Side Operating Voltage Range: 1000Vdc–1500Vdc
- DC Side Maximum Operating Current: 1673A × 4
- Rated Output Voltage: 690Vac (-15%~+10%)
- Dimensions (W×H×D): 8000×3200×3050mm
