- Intelligent string-type architecture with one-cluster-one-management, maximizing system discharge capacity over the entire lifecycle. System RTE ≥89% with low losses; liquid cooling temperature control keeps battery temperature difference <3°C, reducing auxiliary power consumption by 30%.
- Low power loss ratio upon single-unit failure ensures high system availability, maximizing sustained revenue for the power station.
- System power is easily expandable and customizable, flexibly adaptable to 2/4-hour energy storage systems.

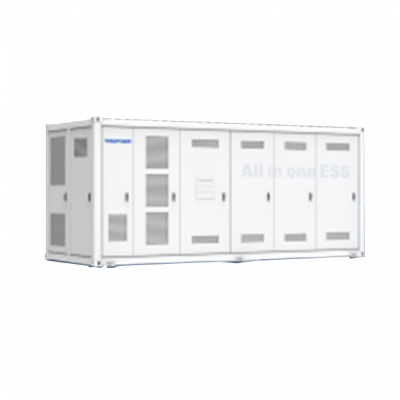

- Ultimate 20-foot containerized system; factory prefabricated and pre-tested, reducing transportation and delivery costs.
- Embedded AC/DC integrated All-in-One design, grid-connected upon installation with no commissioning required.
- Ultimate 20-foot container design reduces footprint by 55%, lowering transportation and delivery costs.
- Full-stack in-house development of 3S (BMS, PCS, EMS) enables rapid response to customized customer requirements.
- Cloud platform online monitoring with real-time fault alerts; supports remote and local upgrades for critical equipment; intelligent O&M tailored for power station applications; energy storage system accepts scheduling and management from site-level EMS.
- Cell Type: LFP/314Ah
- Rated Battery Energy: 5015.9616kWh
- Rated Output Power: 2507.9808kW
- Rated Output Voltage: 690Vac
- Maximum System Efficiency: 89%
- Protection Rating: IP55
