- Power unit efficiency up to 99%, full-load system efficiency ≥97.5%; one-cluster-one-management architecture maximizes charge/discharge throughput of the energy storage system. Real-time monitoring of transformers and medium/low-voltage switchgear with high-precision electrical parameter measurement.
- System power is easily expandable and customizable, flexibly adaptable to 1/2/4/8-hour energy storage systems.

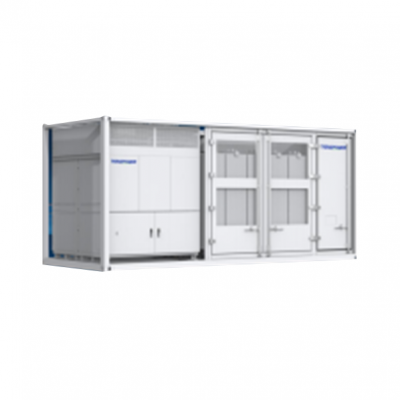

- Ultimate 20-foot containerized system; factory prefabricated and pre-tested, reducing transportation and delivery costs.
- String-type architecture minimizes power loss ratio upon single-unit failure, ensuring high system availability. Intelligent liquid cooling ensures continuous and stable equipment operation with high reliability. Multi-level electrical protection with IP54 overall protection rating and IP66 protection for core components, adaptable to extreme environments.
- Supports multiple communication protocols including IEC61850 for fast response; supports high/low voltage ride-through, frequency regulation, black start, grid-forming support, and other grid support functions with strong grid adaptability.
- Rated Power: 430kW × 16
- DC Side Operating Voltage Range: 1000Vdc–1500Vdc
- DC Side Maximum Operating Current: 448A × 16
- Rated Output Voltage: 690Vac (-15%~+10%)
- Dimensions (W×H×D): 6058×2438×2890mm
