Features:
- Provide operators with pass and fail judgment data
- Measuring the true performance of your reflow oven
- SPC Predictive Performance : Reduce Rework/Scrap
- Concise and objective data – no explanation required
- Integrated design for ease of use – reduces downtime
- Automated SPC reporting – saving engineering time
- CP and Cpk – Process Capability Index – Automatic Calculation
- Verify reflow oven related performance

Specification:
Dimensions: Length: 452mm (17.75 in) Thickness: 31.75mm (1.25 in)
Width: 168mm (6.6 in), 305mm (12 in), 457mm (18 in)

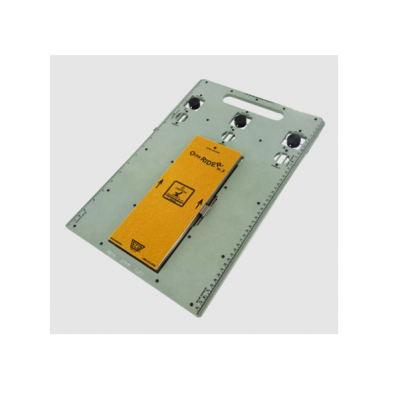

Weight (OvenRIDER® NL 2+ only):
• 168mm (6.6 in) – 1.74 kg (3.84 lbs)
• 305mm (12 in) – 2.81 kg (6.19 lbs)
• 457mm (18 in) – 3.54 kg (7.8 lbs)
Maximum operating temperature:
• 204°C (400°F) for 25 minutes
• 15 minutes at 260°C (500°F)
Sampling time (SuperM.O.L.E.® Gold): 0.1 sec
Data capacity (SuperM.O.L.E.® Gold): 9 min and 6 sec
