Features:

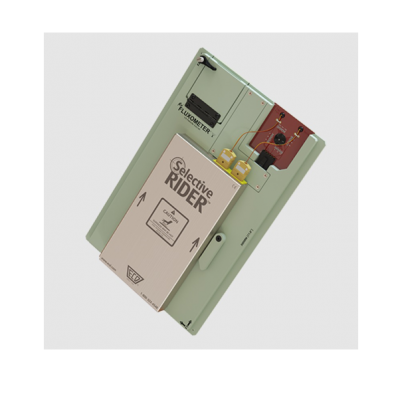

The SelectiveRIDER® is a measurement pallet designed to capture parameters from the selective solder process and collect machine data for repeatability. It uses a 6-Channel ECD M.O.L.E.® thermal profiler as the data collection device, and a dedicated environment in MAP software for analysis and SPC. It captures: fountain height, fountain X/Y accuracy, fountain diameter, solder temperature, maximum preheat, Delta T at contact, Flux penetration, and Fluxer X/Y accuracy.

Specification (pallet):
- Operating temperature: Maximum temperature: 300℃
- X/Y fountain position accuracy:
• Range: 0mm-5.5mm, ±X and ±Y coordinates
• Accuracy: ±0.5mm, • Resolution: 0.1mm
- Fountain diameter:
• Range: 3mm-12mm
• Accuracy: ±0.5mm, • Resolution: 0.1mm
- Fountain height:
• Range: 0mm-6mm
• Accuracy: ±0.5mm, Resolution: 0.5mm
- Dwell time: Accuracy: ±0.01 seconds, resolution 0.1 seconds
- Overall dimensions: L300*W200*H35.4mm
- Weight: 1.72kg
