Features:
1. DYNAMIC MEASUREMENT CAPABILITIES
• Flexible data extraction • Open architecture • Unique design allowing extended sensor types and measures along with density with location profile technology
2. CONTINUOUS QUALITY MONITORING:
• Precise PASS / FAIL for every board
• Intuitive interface supports multiple lanes, ovens, and factories
• Responsive and programmable event actions and notifications
3. INDUSTRY 4.0+
• Industry accepted SQL database with mirroring, aggregation built in
• Easy integration and featured reporting delivers actionable data & deep analytics.
4. Automated Thermal Profiling: Auto start /arm/profile generation/product change over
5. FULL-FEATURED TRACEABILITY
• Local and remote database support • Dynamic and featured traceability record.
• Extended sensor inputs allows for monitoring of additional measures like O2

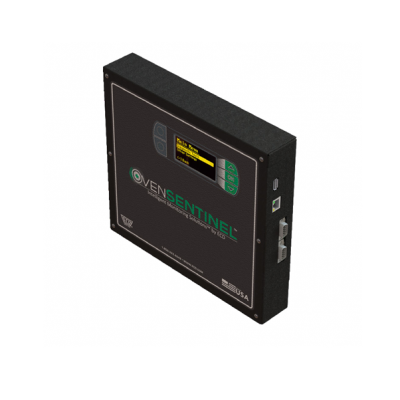

6. OVENSENTINEL SOFTWARE
• Continuous oven monitoring • Process Data Archiving and Playback
• Automatic Statistical Process Control Charting • Out-of-Specification Alarm
• Trusted traceability with patent-pending TrueProfile™ technology

Specification :
1. SENSORS: • Custom Zone Thermal Probe per Oven Make & Model
• Optical Board Entry and Exit • Inductive Conveyor Speed
2. MAXIMUM PROBE TEMPERATURE:
• Flexible Probe: 350°C (662°F) • Solid Probe: 350°C (662°F)
3. DISPLAY / NOTIFICATION: • Status Badge / Light Tower (Optional):
• Green: System In Spec •Yellow: System Warning • Red: Out-of-Spec Indicator
4. STATION INPUTS (59 TOTAL)
• Thermocouple (24): Type K, ± 1.5°C (2.7°F)
• Digital (7): - Boolean: True/False (1/0)
• Frequency: 10-1,000Hz ± 1 Hz • Period: 0-10 Seconds ± 1 Millisecond
• RS-485 (1): • MODBUS Protocol • RS-232 (2): • ASCII
5. SOFTWARE REQUIREMENTS: •Microsoft Windows® 7 or higher
• OvenSENTINEL Software: MS SQL (Included)
