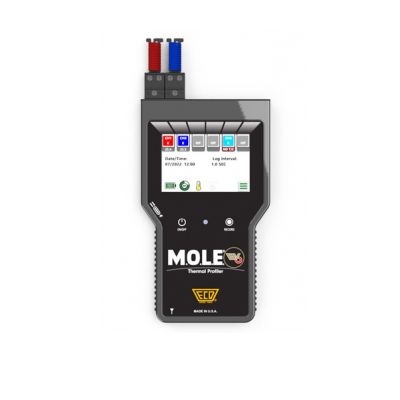

Wave Soldering Process Analyzer M.O.L.E. EV6

Manufacturer:  ECD

Model No.:  M.O.L.E. EV6

Specifications

Features:
1. On-screen display: Real-time temperature readings KPI charts
2. Maintenance: Built-in calibration reminder, Battery life/charge indicator,
Memory status
3. Flexibility: Supports multiple thermocouple types
4. Speed: 100 samples per second
5. Ease of use: USB communication and charging,
2 button controls (on/off and record)
6. Operational Robustness: High capacity, off-the-shelf Lipo battery, automatic shutdown protection, Programmable to conserve battery life, Watchdog timer-monitored firmware control, ESD protected inputs, Non-volatile profile memory

Specification :
1. DISPLAY:
 IPS TFT display  240 x 363 dot matrix
 High brightness LED backlight  Any angle viewing direction.
2. THERMOCOUPLE SENSORS (UP TO 6):
 ECD Micro-Thermocouples: Type K, T, J, E, N, R, S & B
 %RH: ECD VaporWATCH™ RH sensor
3. DATA ACQUISITION:
 Sampling interval: 100 samples/second to 10 minutes/sample
 Data points: 16 million (2.6 million at 6 channels) or 200 data runs
 Accuracy: +/- 1°C (1.8°F)
 Resolution: 0.0056°C (0.01°F)*
 Noise Rejection: 50-60 hrz*
 Measurement range: -200°C to 1,200°C (-328°F to 2,192°F)
