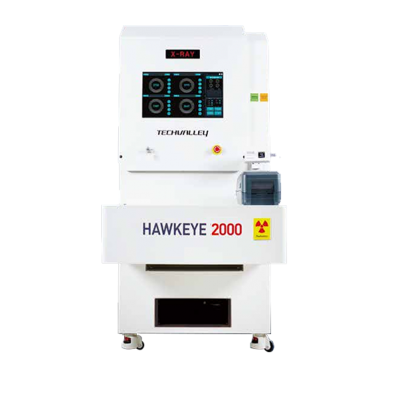

Manufacturer: Techvalley Co., Ltd.
Model No.: HAWKEYE 2000
- Smart Reel Counter
- Simple and easy Operation
- Count Accuracy > 99.9%
- Fast in Counting
- MES / ERP Integration
- Automatic Barcode Scanner (Option)
|
Machine |
HAWKEYE 2000 |
|
X-Ray Source |
55kV / 110W / 400μm Focal spot size |
| Image Detection |
17 inches FPXD / 140ym Pixel size |
|
Inspection Area |
Max. 380㎜ Reel / Min. 180㎜ Reel / Min. 0201 Chip |
|
X-Ray Safety |
1uSv / a hour |
| Dimension & Weight | (W X D X H / ㎜) 900 X 1,316 X 1,930 / 650kg |
| Manipulator | Feeding door type |
